SU Radio Monitoring Page
In the current release the SU Radio Monitoring page is applicable only for a modular Base station.

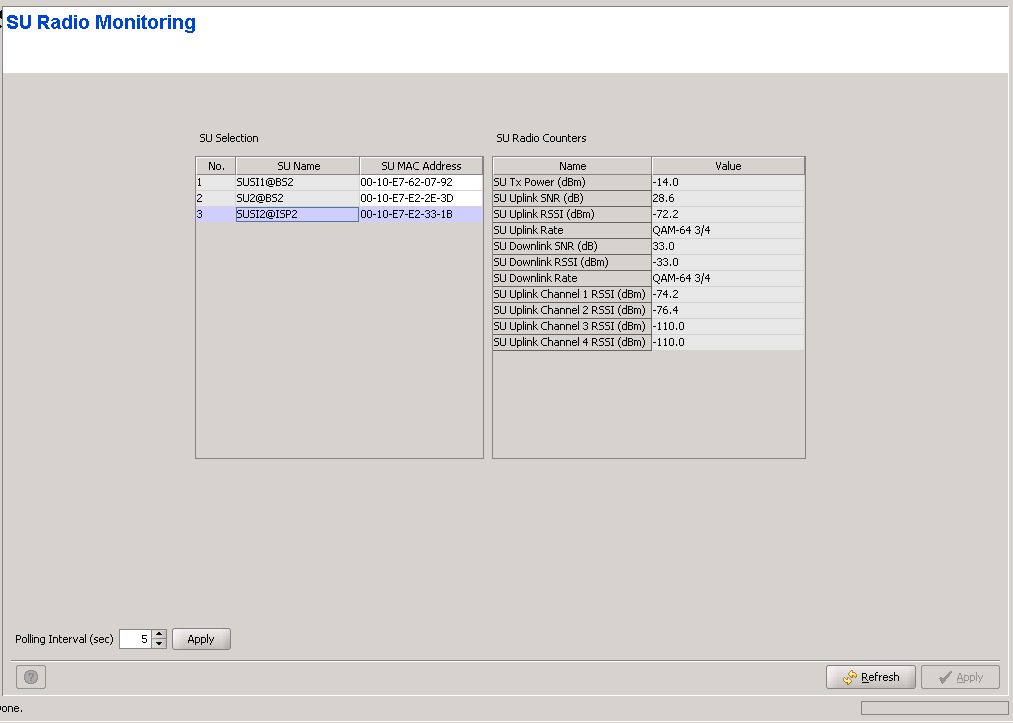

The SU Radio Monitoring page enable viewing wireless link performance indicators for a selected SU.
|
The SU Selection table displays a list of all registered SUs. Select an entry to view its wireless link performance indicators.
The SU Radio Counters displays the following performance indicators for the selected SU:
Parameter |
Description |
SU Tx Power (dBm) |
The current Tx Power (in dBm) of the SU |
SU Uplink SNR (dB) |
The combined SNR (in dB) of the signal received from the SU at all the ODUs connected to to the AU that serves the SU. |
SU Uplink RSSI (dBm) |
The combined RSSI (in dBm) of the signal received from the SU at all the ODUs connected to to the AU that serves the SU. |
SU Uplink Rate |
The current rate of uplink transmissions from the SU. |
SU Downlink SNR (dB) |
The SNR (in dB) at the SU. |
SU Downlink RSSI (dBm) |
The RSSI (in dBm) at the SU. |
SU Downlink Rate |
The current rate of uplink transmissions to the SU. |
SU Uplink Channel 1 RSSI (dBm) |
The RSSI (in dBm) of the signal received from the SU at the ODU connected to channel 1 of the serving AU. A value of -110.0 indicates no reception. |
SU Uplink Channel 2 RSSI (dBm) |
The RSSI (in dBm) of the signal received from the SU at the ODU connected to channel 2 of the serving AU. A value of -110.0 indicates no reception. |
SU Uplink Channel 3 RSSI (dBm) |
The RSSI (in dBm) of the signal received from the SU at the ODU connected to channel 3 of the serving AU. A value of -110.0 indicates no reception. |
SU Uplink Channel 4 RSSI (dBm) |
The RSSI (in dBm) of the signal received from the SU at the ODU connected to channel 4 of the serving AU. A value of -110.0 indicates no reception. |
|
|
