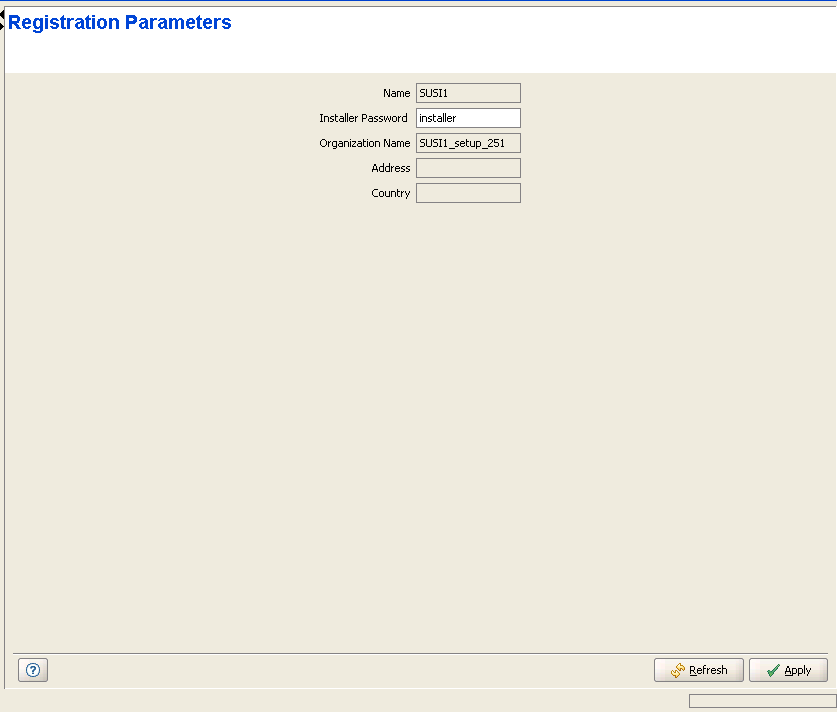

Parameter

Description

SU Name

A read-only display of the SU's Name (User Name). The SU's User Name can only be configured locally in the SU.

In Ethernet CS Switching Mode, the default SU Name given to a new SU during the definition process (adding a permanent SU) is SU@<SU's MAC Address>. When an SU is registered, it receives services based on its MAC address, and the default SU Name is replaced by the name configured in the SU (User Name).

A Base Station cannot serve two SUs with the same User Name. Upon identifying an SU with an SU Name (User Name) that is identical to that of a previously registered SU, the new SU will be registered (to enable management), but will not receive any services. Its name in the database will be changed to SU@<SU's MAC Address>. The system administrator will be informed of the problem through the Service Fault Status parameter in the SU Summary Page. If the administrator decides that the SU is legitimate and should receive services, a new User Name must be configured in the SU.

Installer Password

The Installer Password is used for accessing the SU's Monitor (Installer) program locally, using Telnet via the SU's Ethernet port.

The Installer Password consists of a string of up to 20 printable characters, case sensitive.

Organization Name

A read-only display of the Organization Name as configured locally in the SU.

Address

A read-only display of the Address as configured locally in the SU.

Country

A read-only display of the Country as configured locally in the SU.
