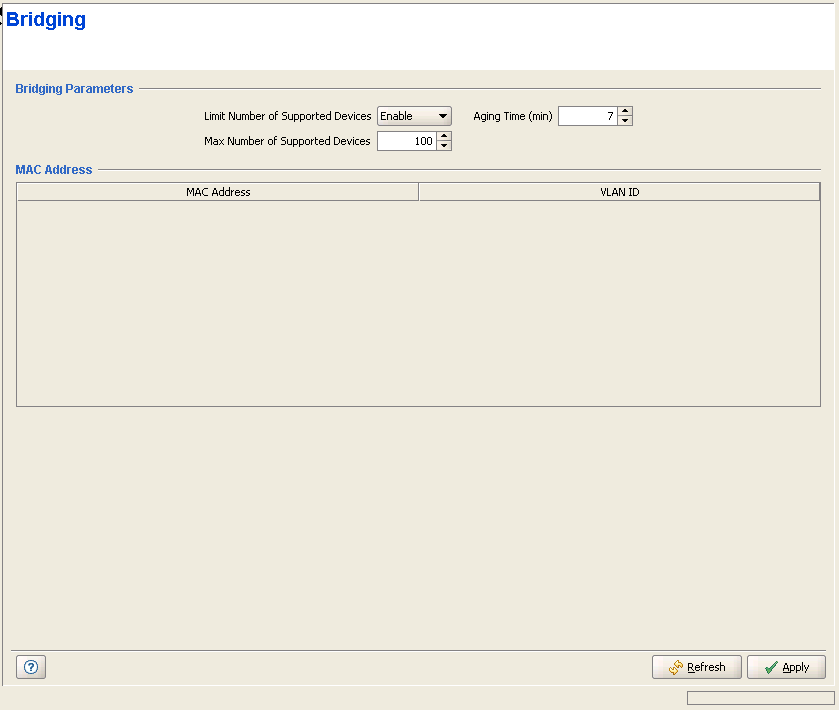

Parameter

Description

Limit Number of Supported Devices

If the Limit Number of Supported Devices parameter is set to Disable, the maximum number of supported devices is 512. If it is set to Enable, the maximum number is defined by the Max Number of Supported Devices parameter.

Max Number of Supported Devices

The maximum number of devices that can be supported when the Limit Number of Supported Devices is set to Enable.

The available values are from 1 to 512.

Aging Time

The aging time for all addresses in the SU's Forwarding Data Base.

The available values are from 1 to 1440 minutes.

MAC Address Table

A read-only table displaying the MAC Addresses of devices behind the SU, and (if applicable) the VLAN ID associated with each device (if a device uses more than one VLAN ID, the first identified VLAN ID will be displayed).
