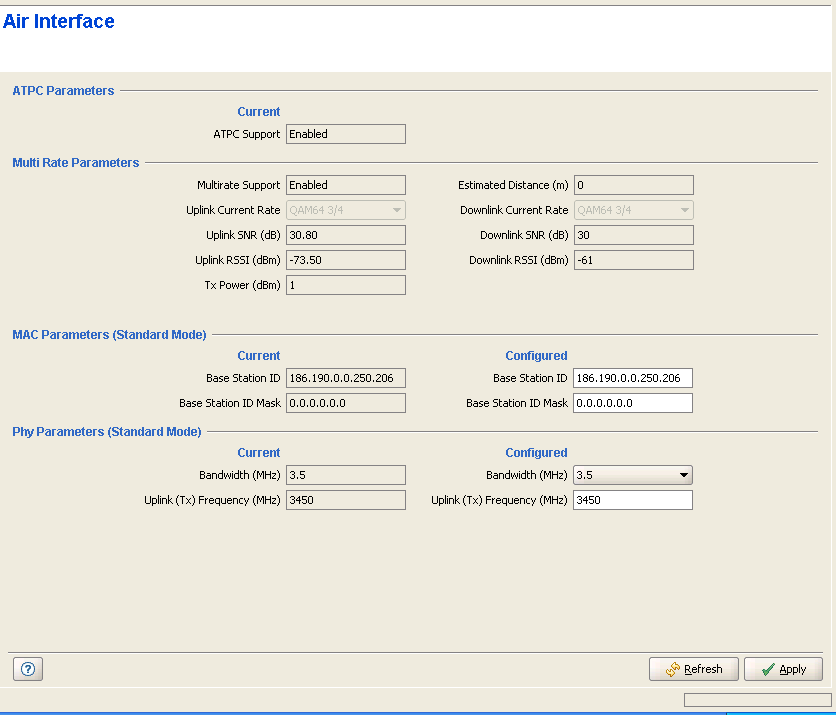

SU Air Interface Page (3.5 GHz Unit)
The Air Interface page enables viewing and configuring the ATPC and Multi Rate parameters. For 3.5 GHz units, it also enables pre-configuration of MAC and Phy parameters for FDD Standard operation mode. These parameters do not affect the operation of the unit when using Advanced Si operation mode. These parameters are provided to support the Automatic Platform Detection mechanism of the dual-mode CPEs, allowing pre-configuration of the relevant parameters before switching the sector to operate in FDD mode using Standard operation mode. These parameters are applicable only to SUs in the 3.x GHz bands.
|
The SU Air Interface page includes the following:
• MAC Parameters (Standard Mode)
• Phy Parameters (Standard Mode)
|
|
