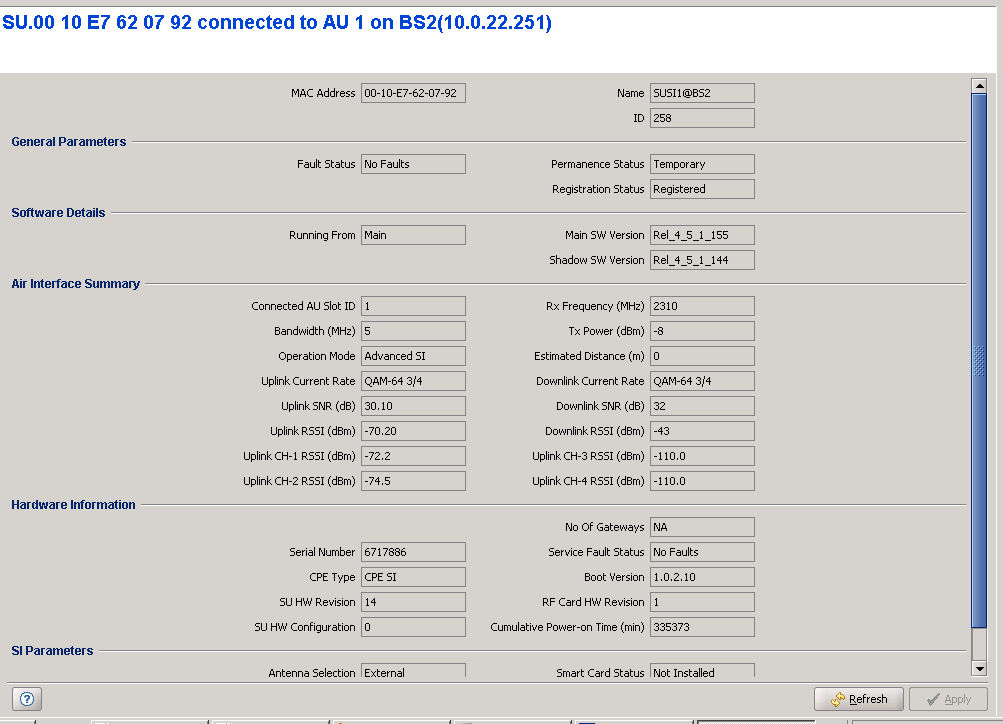

SU Summary Page

The SU Summary page provides general details on the hardware and software of the Subscriber Unit as well as a summary of configuration parameters.

The read-only details are:

• Identification Details

- MAC address

- Name

- ID (an ID allocated to each SU by the connected AU/Micro Base Station)

• General Parameters:

- Fault Status

- Permanence Status

- Registration Status

• Software Details

- Running From: Main or Shadow

- Main SW Version

- Shadow SW Version

• Air Interface Summary

- Connected AU Slot ID (always 1 for a Micro Base Station)

- Bandwidth (MHz)

- Operation Mode (only Advanced Si is applicable in current version)

- Uplink Current Rate

- Uplink SNR (dB): The combined SNR for all ODUs connected to the serving AU/Micro Base Station.

- Uplink RSSI (dBm): The combined SNR for all ODUs connected to the serving AU/Micro Base Station.

- Rx Frequency (MHz)

- Tx Power (dBm)

- Estimated Distance (m)

- Downlink Current Rate

- Downlink SNR (dB)

- Downlink RSSI (dBm)

- Uplink CH-1 RSSI (dBm): The RSSI in the ODU connected to channel 1 of the serving AU/Micro Base Station. A value of -110.0 indicates no reception (RSSI below -102 dBm).

- Uplink CH-2 RSSI (dBm): The RSSI in the ODU connected to channel 2 of the serving AU/Micro Base Station. A value of -110.0 indicates no reception (RSSI below -102 dBm).

- Uplink CH-3 RSSI (dBm): The RSSI in the ODU connected to channel 3 of the serving AU/Micro Base Station. A value of -110.0 indicates no reception (RSSI below -102 dBm).

- Uplink CH-4 RSSI (dBm): The RSSI in the ODU connected to channel 4 of the serving AU/Micro Base Station. A value of -110.0 indicates no reception (RSSI below -102 dBm).

• Hardware Information

- Serial Number

- CPE Type

- SU IDU Type: Basic (Universal IDU) or an IDU Gateway using DRAP (IDU-NG-4D1W, IDU-1D1V, IDU-1D2V, SRU-FT-1D1V, SRU-FT-1D1V). Not applicable for units operating in IP CS Switching Mode.

- SU HW Revision

- SU HW Configuration

- No of Gateways: In Ethernet CS Switching Mode this is the number of Alvarion Gateways using DRAP (including IDU gateways) or SIP devices using Managed VoIP service connected to the SU. In IP CS Switching Mode this is the number of VoIP SIP devices using Managed VoIP service connected to the SU.

- Service Fault Status (OK or reason for denying services to the SU: Loop or Duplicate SU Name).

- Boot Version

- RF Card HW Revision

- Cumulative Power On Time (minutes)

• SI (Self Install SU) Parameters

- Antenna Selection (as configured in the SU)

- Interface Type (Ethernet or USB)

- Smart Card Status
