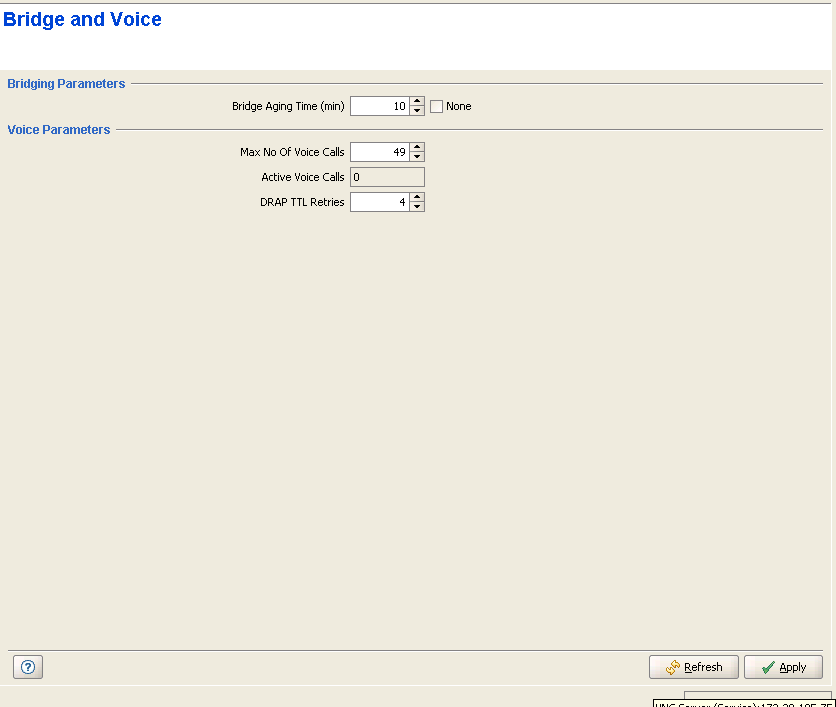

**Bridge and Voice Page, Micro Base Station**

The Bridge and Voice page includes the following general parameters for bridging and for control of VoIP sessions made by devices using the DRAP protocol, or SIP VoIP devices using Managed VoIP Services:

Parameter	Description
Bridge Aging Time	The aging time for all addresses in the Forwarding Data Base. The available values are from 1 to 1440 minutes, or 0 (None) for no aging.
Max No. of Voice Calls	The upper limit of simultaneous voice calls that will be supported by the Micro Base Station. The range is from 0 to 50 Voice Calls.
Active Voice Calls	A read-only display of the current number of voice calls in the cell.
DRAP TTL Retries	The limit of TTL retries for gateways that support the DRAP protocol before concluding that the gateway is no longer active and removing it from the database. The TTL retry time (the maximum time between two consecutive Allocation Requests) is 255 seconds. The range is from 1 to 100 retries.
