BS Tab

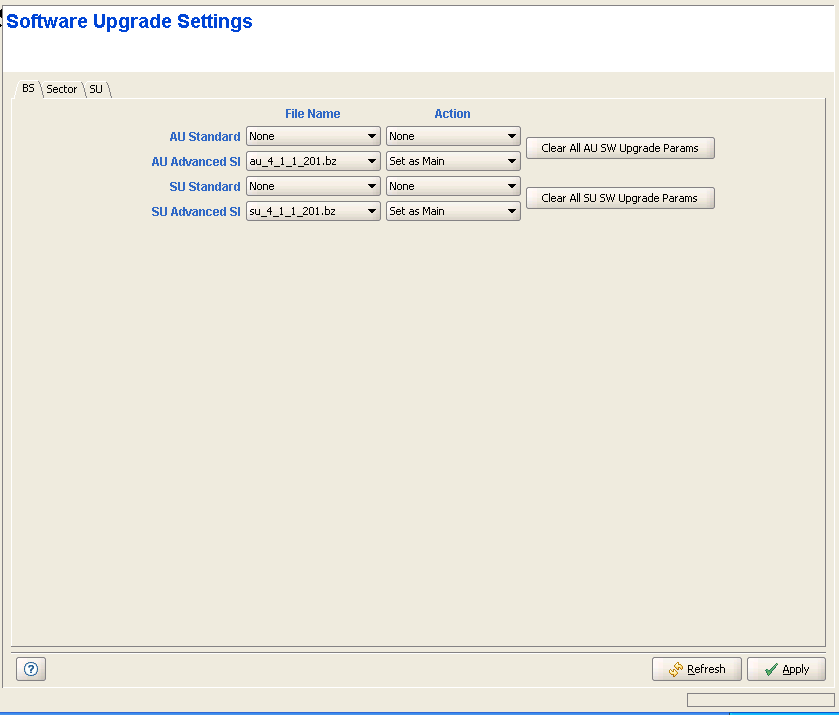

**Software Upgrade Settings Page - BS Tab (modular Base Station)**

The BS tab of the Software Upgrade page enables an efficient and simple-to-manage upgrade process, by defining the SW File and Action for all AUs and/or SUs in the Base Station.

Two different pairs of SW File Name and Action may be defined for each device type (AU/SU), to optionally support AUs/SUs using either Standard Operation Mode or Advanced Si (Advanced - Self Install) Operation Mode. In the current release only the Advanced Si Operation Mode is applicable.

For AUs, these are the SW File and associated Action that will be used for each AU after being installed, as well as after each reset. These SW File Names and Actions are applicable to all AUs in the Base Station using the specified Operation Mode. However, they are not applicable for any AU whose configured SW File Name in the Sector tab is other than None (null).

For SUs, these are the SW File and associated Action that will be used for an SU after network entry. These SW File Names and Actions are applicable to all SUs in the Base Station using the specified Operation Mode. However, they are not applicable for any SU for which the configured SW File in the Sector tab is other than None (null). They are also not applicable to any Permanent SU whose configured SW File Name in the SU tab is other than None (null).

The BS tab includes the following components:

Parameter/Button	Description
File Name (AU Standard, AU Advanced Si SU Standard SU Advanced Si)	The Name of the SW File to be used for upgrading an AU/SU using the specified Operation Mode (Standard/Advanced Si). Should be one of the AU/SU SW Files currently stored in the NPU, or None (null).
Action (AU Standard, AU Advanced Si SU Standard SU Advanced Si)	For AUs using the relevant Operation Mode: The operation to be performed with the specified SW File for each AU after being installed, as well as after each reset. For SUs using the relevant Operation Mode: The operation to be performed with the specified SW File after network entry. The available options: None (do not load), Load to Shadow, Run from Shadow or Set as Main. Both File Name and Action must be configured (different than None) to properly define the upgrade process. Not applicable for any AU whose configured SW File Name in the Sector tab is other than None (null). Not applicable for any SU served by an AU for which the configured SW File in the Sector tab is other than None (null). They are also not applicable to any Permanent SU whose configured SW File Name in the SU tab is other than None (null).
Clear All AU SW Upgrade Params	Delete all AU SW Files and Actions (the AU File Names and Actions configured in the Sector tab) in all AUs.
Clear All SU SW Upgrade Params	Delete all SU SW Files and Actions (the SU File Names and Actions configured in the SU tab) in all Permanent SUs served by the Base Station.
