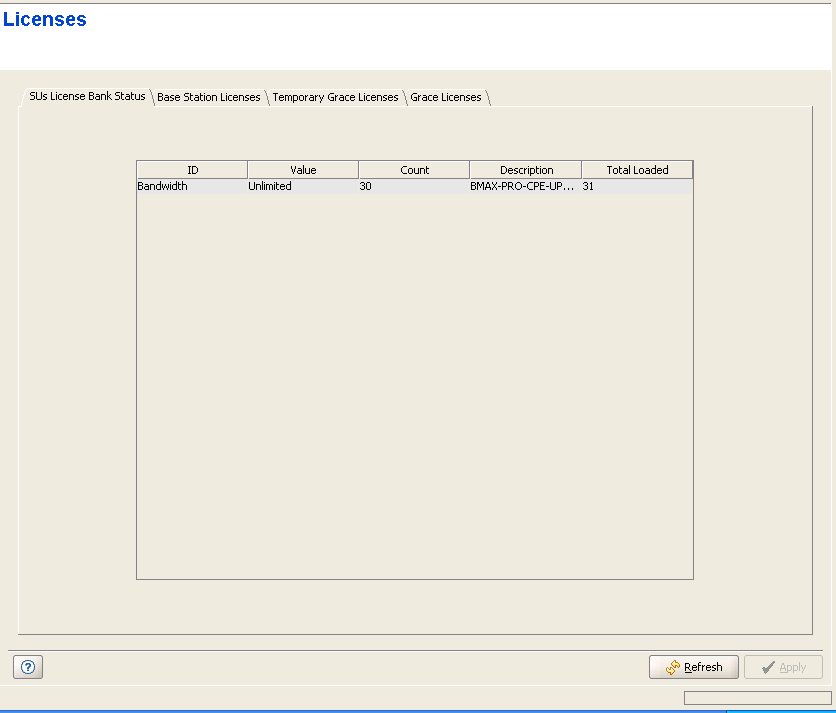

Licenses - SUs License Bank Status Tab
|
The SUs License Bank Status tab displays the current status of the SUs Licenses (if available). The displayed information for each license type includes:
Parameter |
Description |
ID |
The relevant license type. In the current version only a BW (Band-Width) license type is available. |
Value |
The specific details of the relevant licenses. In the current version all BW licenses are Unlimited. |
Count |
The number of currently available licenses (balance). Each time a license is granted to a specific CPE, the License Count is decremented by one. |
Description |
A description of the license |
Total Loaded |
The total number of licenses of the relevant type that were loaded to the device. |
|
|
