Parameter

Description

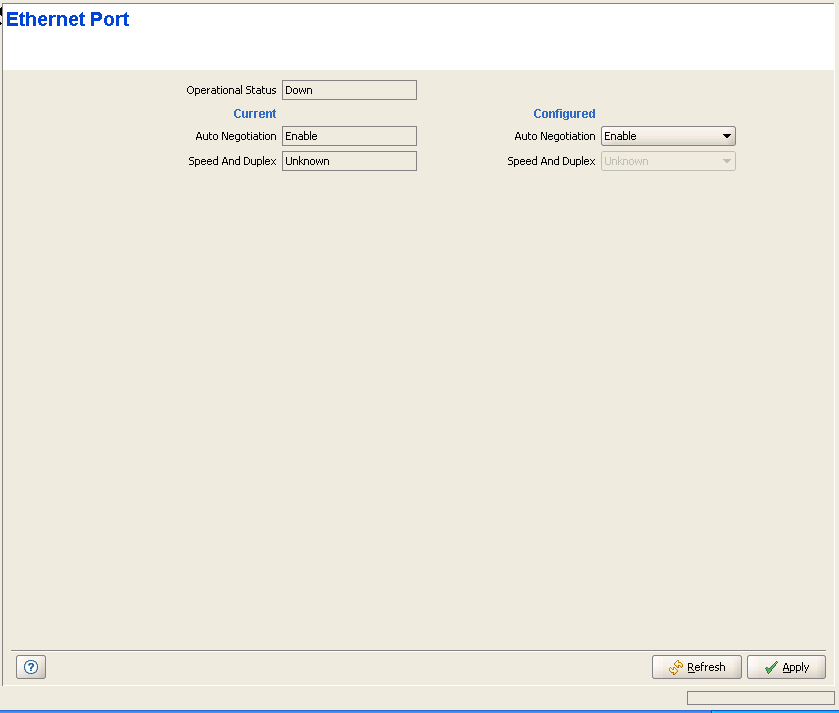

Operational Status

The status of the Ethernet link: Up or Down.

Current Auto Negotiation

The current auto negotiation mode.

Current Speed and Duplex

The current actual link speed and duplex.

Configured Auto Negotiation

The auto negotiation mode that will be in effect after the next reset.

Configured Speed and Duplex

Configurable only if the Configured Auto Negotiation is set to Disable.The link speed that will be in effect after the next reset. The available options are

• Full duplex 100Mbps

• Half duplex 100Mbps

• Full duplex 10Mbps

• Half duplex 10Mbps
