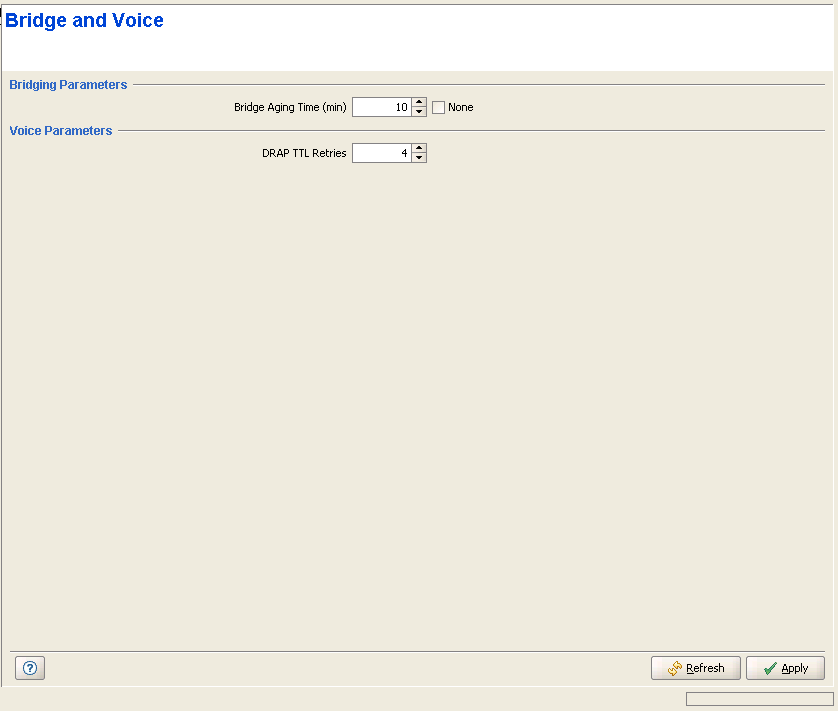

Bridge and Voice Page (NPU)
|
The Bridge and Voice page includes the following general parameters for bridging and for control of VoIP devices using the DRAP protocol:
Parameter |
Description |
Bridge Aging Time |
The aging time for all addresses in the Forwarding Data Base. The available values are from 1 to 1440 minutes, or 0 (None) for no aging. |
DRAP TTL Retries |
The limit of TTL retries for gateways that support the DRAP protocol before concluding that the gateway is no longer active and removing it from the database. The TTL retry time (the maximum time between two consecutive Allocation Requests) is 255 seconds. The range is from 1 to 100 retries. |
|
|
