Frequency Bands File Page

Frequency Bands File Pag e

The Frequency Bands Configuration file defines the properties of each of the frequency bands supported by the system.

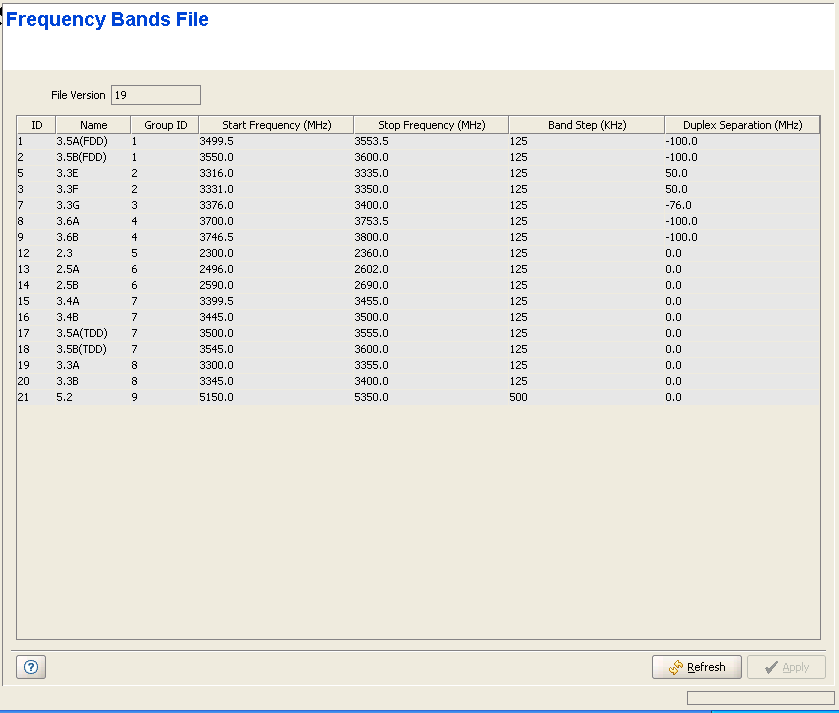

**Frequency Bands File Page**

These frequency bands' properties include:

Parameter	Description
ID	The Frequency Band ID.
Name	The Frequency Band name.
Group ID	In certain cases an AU/Micro Base Station can be connected to ODUs using different Frequency Bands. The Group ID defines the Frequency Bands Group, which includes the Frequency Bands that can be used by the AU/Micro Base Station connected to an ODU using the Frequency Band.
Start Frequency	The lowest downlink frequency in MHz.
Stop Frequency	The highest downlink frequency in MHz.
Band Step	The frequency resolution in KHz.
Duplex Separation	The difference between downlink (Tx) and uplink (Rx) frequencies, in MHz. For TDD bands the Duplex Separation is 0.

In addition, the File Version of the Frequency Bands File is also displayed.

	NOTE
	The Frequency Bands File includes also Frequency Bands for systems that support FDD Duplex Mode. These bands are not applicable to the current release. In addition, certain TDD bands included in the file may not be supported by currently availablr hardware.
