AU View Page

AU View Pag e

The AU View page provides general details on the hardware and software of the AU.

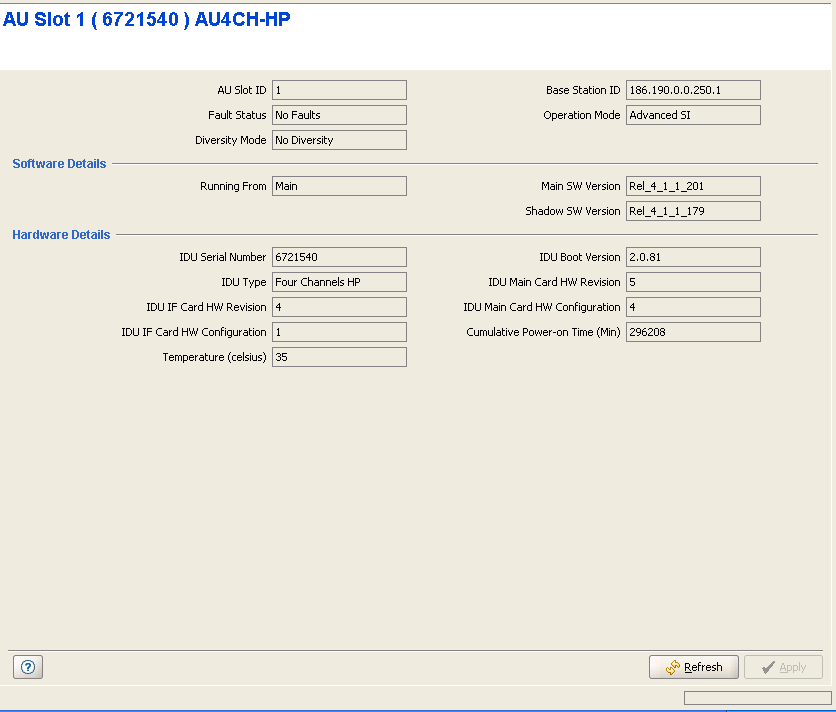

**AU View Page**

The read-only details are:

• AU Slot ID

• Fault Status

• Diversity Mode

• Base Station ID

• Operation Mode (in the current release only Advanced Si is applicable)

• Main SW Version

• Shadow SW Version

• Running From (Main or Shadow)

• IDU Serial Number

• IDU Type (Four Channels HP or Four Channels HP 4M)

• IDU IF Card HW Revision

• IDU IF Card HW Configuration

• Temperature (celsius)

• IDU Boot Version

• IDU Main Card HW Revision

• IDU Main Card HW Configuration

• Cumulative Power On Time (Minutes)
