Gateways Page

Gateways Pag e

The Gateways page enables viewing details on the Voice/Networking Gateways connected to the SU, and open an http cut-through to a selected Gateway for managing it using the built-in web server. This is applicable only for Alvarion's Gateways supporting the DRAP protocol.

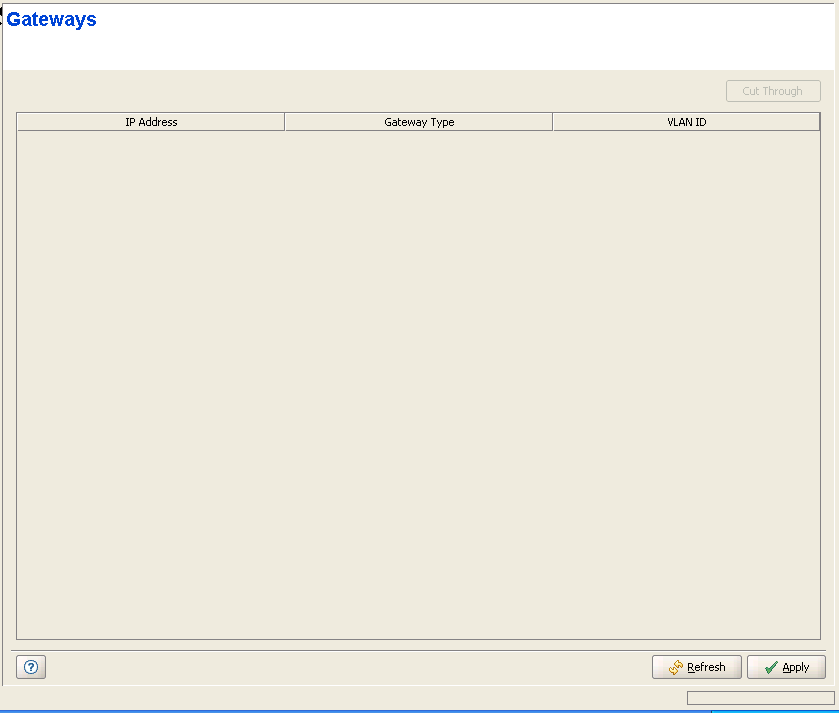

**Gateways Page**

For each Gateway, the following details are provided:

Parameter	Description
IP Address	The IP address of the Gateway.
Gateway Type	The Gateway Type. Currently the following Gateways are supported: • IDU-NG-4D1W: A Networking Gateway that serves also as an SU IDU, supporting 4 data ports and 1 Wireless LAN port. • VG-1D1V: A stand-alone (external) Voice Gateway, supporting 1 data port and 1 POTS port. • VG-1D2V: A stand-alone (external) Voice Gateway, supporting 1 data port and 2 POTS ports.
VLAN ID	Applicable only for Voice Gateways. The VLAN ID used for management of the Gateway.

To manage a Gateway using its built-in web server:

Select an entry and click on the Cut Through button to open a web browser cut-through to the device, enabling to manage it using the web server incorporated in the Gateways.
