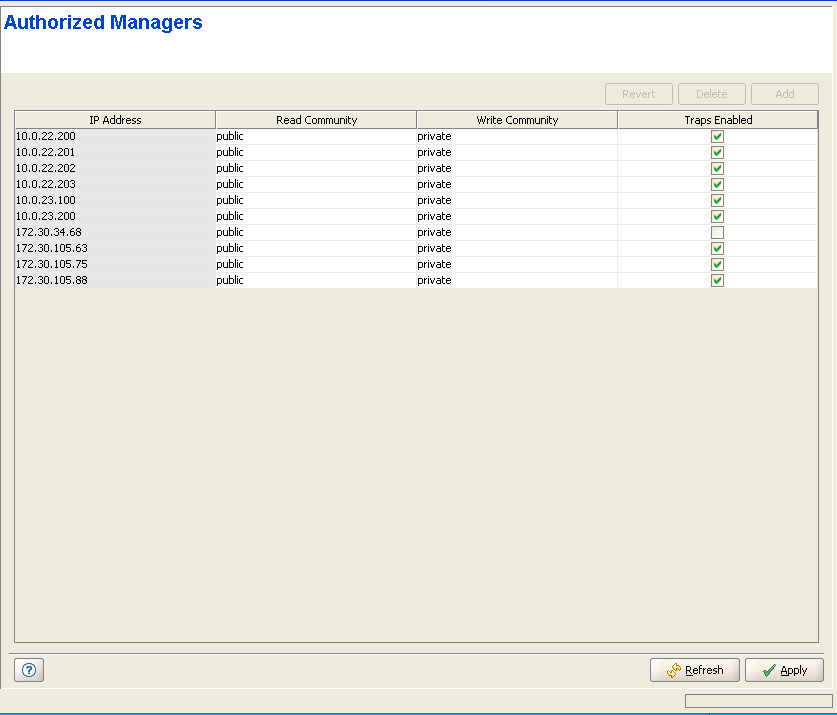

The Authorized Managers page enables managing the list of Authorized Managers. An Authorized Manager is a station that is authorized to manage the Base Station/Micro Base Station and the relevant SUs. The table can contain up to 10 Authorized Managers. If the maximum number is reached, the Add button becomes inactive.
|
NOTE |
If no Authorized Manager is defined in the device, it can be managed using SNMP by any station, with the default Read and Write Communities, but no traps will be sent from the device. If at least one Authorized Manager is defined, the device can be managed only by a station whose parameters match a defined Authorized Manager. |
|
The Authorized Managers table includes the following fields for each Authorized Manager:
Parameter |
Description |
IP Address |
The IP Address of the authorized management station. |
Read Community |
The SNMP Read Community string used by the management station for read-only operations. The Read Community comprises a string of up to 23 case sensitive characters. The Read Community serves also as the Trap Community when the station is configured to receive traps. |
Write Community |
The SNMP Write Community string used by the management station for write/read operations. The Write Community comprises a string of up to 23 case sensitive characters. |
Traps Enabled |
A toggle check-box indicating whether to enable or disable sending traps to the management station. |
|
NOTE |
The Read and Write Communities are mandatory and both must be defined (other than null) |
|
|
